| Antirust Painted Box Profile | |
|---|---|
| Üretim Standartı | TS EN 10219-1 |
|
Genişlik Ölçüsü (Width Dimension) |
20, 25, 30, 40, 50, 60, 65, 70, 80, 90, 100, 120, 140, 150, 180, 200, 250 |
|
Kalınlık (Thickness Dimension) |
Between 0,90 - 8,00 mm |
|
Uzunluk (Length) |
4000 mm - 18000 mm |
|
Kalite (Quality) |
S235JR, S275JR, S275J2 S355JR, S355J2 |

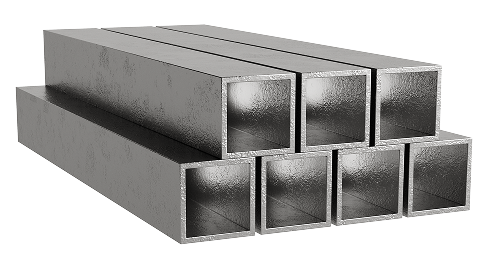

Antirust Painted box profile is a product produced by painting hollow structural steel profiles with square or rectangular cross-section, produced from S235JR (ST37) quality steel in TS EN 10219-1/2 - ASTM A-500 Standards. It is widely used in many sectors such as construction, machinery manufacturing, automotive, furniture. It is 6 MT in length as standard. Special size production between 4 MT - 12 MT can also be produced according to the project usage.
Features of Painted Box Profile:
Material: They are usually made of steel.
Section: They can be square or rectangular.
Structure: It is hollow inside, combining lightness and durability.
Surface: Its surface is painted. Generally, topcoat paint is applied over primer paint.
Dimensions: They can be produced in different sizes.
Durability: They have high durability.
Areas of Use: It is used in many sectors such as construction, machinery manufacturing, automotive and furniture.
Advantages of Painted Box Profile:
Aesthetic Appearance: They have a more aesthetic appearance with their painted surfaces.
Corrosion Resistance: The paint protects the steel from corrosion and extends its lifespan.
Lightness: They are light in weight as a result of their hollow structure.
Durability: They have high durability.
Easy Processability: They can be easily cut, welded and shaped.
Wide Usage Area They can be used in many different sectors.
| KARE BOYALI KUTU PROFİL | TS EN 10219-1 | |||||||||||||||||
| Ebat - mm (Size - mm) | Et Kalınlığı (mm) Birim Ağırlık (kg/mt) | |||||||||||||||||
| mm | 0,60 | 0,70 | 0,80 | 0,90 | 1,00 | 1,20 | 1,50 | 2,00 | 2,50 | 3,00 | 4,00 | 5,00 | 6,00 | 6,30 | 7,10 | 8,00 | 10,00 | 12,50 |
| 10x10 | 0,17 | 0,20 | 0,23 | 0,25 | 0,28 | 0,32 | ||||||||||||
| 15x15 | 0,27 | 0,31 | 0,35 | 0,39 | 0,43 | 0,52 | 0,63 | |||||||||||
| 20x20 | 0,36 | 0,42 | 0,48 | 0,54 | 0,59 | 0,70 | 0,86 | 1,12 | 1,51 | |||||||||
| 25x25 | 0,53 | 0,60 | 0,68 | 0,75 | 0,89 | 1,10 | 1,44 | 1,64 | 1,89 | |||||||||
| 30x30 | 0,64 | 0,73 | 0,82 | 0,90 | 1,08 | 1,34 | 1,75 | 2,15 | 2,39 | |||||||||
| 35x35 | 0,85 | 0,97 | 1,07 | 1,27 | 1,57 | 2,07 | 2,54 | 2,86 | ||||||||||
| 40x40 | 0,97 | 1,09 | 1,21 | 1,44 | 1,81 | 2,38 | 2,93 | 3,33 | 4,09 | |||||||||
| 50x50 | 1,84 | 2,28 | 3,01 | 3,72 | 4,28 | 5,51 | 6,56 | |||||||||||
| 60x60 | 2,75 | 3,64 | 4,50 | 5,22 | 6,76 | 8,13 | 9,82 | |||||||||||
| 70x70 | 3,23 | 4,26 | 5,29 | 6,16 | 8,02 | 9,70 | 11,80 | |||||||||||
| 80x80 | 3,62 | 4,89 | 6,07 | 7,10 | 9,28 | 11,30 | 13,20 | 13,50 | ||||||||||
| 90x90 | 4,08 | 5,52 | 6,86 | 8,04 | 10,50 | 12,80 | 15,10 | 15,50 | ||||||||||
| 100x100 | 6,15 | 7,64 | 8,99 | 11,70 | 14,20 | 17,00 | 17,50 | 19,40 | 21,40 | 25,60 | ||||||||
| 110x110 | 6,78 | 8,44 | 9,93 | 19,30 | 23,80 | 28,30 | 29,30 | 36,50 | 44,40 | |||||||||
| 120x120 | 10,80 | 14,20 | 17,40 | 20,70 | 21,40 | 23,80 | 26,40 | 31,80 | 36,90 | |||||||||
| 125x125 | 14,90 | 18,30 | 21,70 | 22,40 | 27,70 | 33,40 | 33,40 | |||||||||||
| 140x140 | 16,80 | 20,50 | 24,50 | 25,40 | 28,30 | 31,40 | 38,10 | 44,80 | ||||||||||
| 150x150 | 18,00 | 22,10 | 26,40 | 27,40 | 30,50 | 33,90 | 41,30 | 48,70 | ||||||||||
| 160x160 | 19,20 | 23,80 | 28,30 | 29,30 | 32,70 | 36,50 | 44,40 | 52,60 | ||||||||||
| 180x180 | 21,80 | 26,80 | 32,10 | 33,30 | 37,20 | 41,50 | 50,70 | 61,50 | ||||||||||
| 200x200 | 24,20 | 29,90 | 35,80 | 37,20 | 41,60 | 46,50 | 57,00 | 69,40 | ||||||||||
| 220x220 | 33,20 | 39,60 | 41,20 | 46,10 | 51,50 | 63,20 | 77,20 | |||||||||||
| 250x250 | 38,30 | 45,20 | 47,90 | 53,70 | 60,30 | 74,50 | 91,90 | |||||||||||
| DİKDÖRTGEN BOYALI KUTU PROFİL | TS EN 10219-1 | |||||||||||||||
| Ebat - mm (Size - mm) | Et Kalınlığı (mm) Birim Ağırlık (kg/mt) | |||||||||||||||
| mm | 0,60 | 0,70 | 0,80 | 0,90 | 1,00 | 1,20 | 1,50 | 2,00 | 2,50 | 3,00 | 4,00 | 5,00 | 6,00 | 6,30 | 8,00 | 10,00 |
| 10x20 | 0,27 | 0,31 | 0,36 | 0,40 | 0,43 | 0,52 | 0,63 | |||||||||
| 10x25 | 0,31 | 0,36 | 0,41 | 0,45 | 0,50 | 0,59 | 0,75 | |||||||||
| 10x30 | 0,37 | 0,42 | 0,48 | 0,54 | 0,60 | 0,71 | 0,87 | 1,12 | ||||||||
| 15x20 | 0,32 | 0,37 | 0,42 | 0,47 | 0,52 | 0,61 | 0,75 | 0,97 | ||||||||
| 15x25 | 0,37 | 0,42 | 0,48 | 0,54 | 0,59 | 0,70 | 0,86 | 1,12 | 1,51 | |||||||
| 15x30 | 0,40 | 0,47 | 0,53 | 0,61 | 0,68 | 0,83 | 0,99 | 1,29 | ||||||||
| 15x40 | 0,59 | 0,67 | 0,75 | 0,82 | 0,97 | 1,19 | 1,53 | |||||||||
| 20x25 | 0,48 | 0,55 | 0,61 | 0,67 | 0,80 | 0,98 | 1,28 | |||||||||
| 20x30 | 0,53 | 0,61 | 0,68 | 0,75 | 0,89 | 1,10 | 1,44 | 1,64 | 1,89 | |||||||
| 20x35 | 0,59 | 0,67 | 0,75 | 0,82 | 0,97 | 1,22 | 1,53 | |||||||||
| 20x40 | 0,73 | 0,82 | 0,90 | 1,08 | 1,34 | 1,75 | 2,15 | 2,39 | ||||||||
| 20x50 | 0,97 | 1,07 | 1,27 | 1,57 | 2,07 | 2,54 | 2,86 | |||||||||
| 25x30 | 0,75 | 0,82 | 0,97 | 1,19 | 1,53 | |||||||||||
| 25x35 | 0,73 | 0,82 | 0,91 | 1,09 | 1,34 | 1,75 | 2,15 | 2,39 | ||||||||
| 25x40 | 0,79 | 0,89 | 0,99 | 1,18 | 1,46 | 1,91 | 2,34 | 2,63 | ||||||||
| 25x50 | 1,04 | 1,15 | 1,37 | 1,69 | 2,22 | 2,74 | 3,10 | |||||||||
| 30x35 | 0,89 | 0,99 | 1,18 | 1,46 | 1,91 | 2,34 | 2,63 | |||||||||
| 30x40 | 0,85 | 0,95 | 1,07 | 1,27 | 1,57 | 2,07 | 2,54 | 2,86 | ||||||||
| 30x50 | 0,97 | 1,09 | 1,22 | 1,44 | 1,81 | 2,38 | 2,93 | 3,33 | 4,09 | |||||||
| 30x60 | 1,65 | 2,05 | 2,69 | 3,33 | 3,80 | 4,88 | ||||||||||
| 30x70 | 1,84 | 2,28 | 3,01 | 3,72 | 4,28 | 5,51 | ||||||||||
| 40x50 | 1,65 | 2,05 | 2,69 | 3,33 | 3,80 | 4,88 | ||||||||||
| 40x60 | 1,84 | 2,28 | 3,01 | 3,72 | 4,28 | 5,51 | 6,56 | |||||||||
| 40x80 | 2,75 | 3,64 | 4,50 | 5,22 | 6,76 | 8,13 | ||||||||||
| 40x100 | 3,23 | 4,26 | 5,29 | 6,16 | 8,02 | 9,70 | ||||||||||
| 50x60 | 2,52 | 3,32 | 4,11 | 4,75 | 6,14 | |||||||||||
| 50x70 | 2,75 | 3,64 | 4,50 | 5,22 | 6,76 | 8,13 | ||||||||||
| 50x90 | 3,23 | 4,26 | 5,29 | 6,16 | 8,02 | 9,70 | ||||||||||
| 50x100 | 3,40 | 4,58 | 5,68 | 6,63 | 8,65 | 10,50 | ||||||||||
| 50x150 | 6,15 | 7,64 | 8,99 | 11,80 | 14,40 | 17,00 | ||||||||||
| 60x80 | 3,23 | 4,26 | 5,29 | 6,16 | 8,02 | 9,70 | 11,80 | |||||||||
| 60x100 | 3,62 | 4,89 | 6,07 | 7,10 | 9,28 | 11,30 | 13,20 | 13,50 | ||||||||
| 60x120 | 4,08 | 5,52 | 6,86 | 8,04 | 10,50 | 12,80 | 15,10 | 15,50 | ||||||||
| 80x100 | 4,08 | 5,52 | 6,86 | 8,04 | 10,50 | 12,80 | 15,10 | 15,50 | ||||||||
| 80x120 | 8,96 | 11,70 | 14,40 | 17,00 | 17,50 | 21,40 | ||||||||||
| 80x140 | 9,93 | 13,00 | 16,00 | 18,90 | 19,40 | 23,90 | ||||||||||
| 80x160 | 10,80 | 14,20 | 17,40 | 20,70 | 21,40 | 26,40 | ||||||||||
| 100x150 | 14,90 | 18,30 | 21,70 | 22,40 | 27,70 | 33,40 | ||||||||||
| 100x200 | 17,90 | 22,10 | 26,40 | 27,40 | 33,90 | 41,30 | ||||||||||
| 100x300 | 24,20 | 29,90 | 35,80 | 37,20 | 46,50 | 57,00 | ||||||||||
| 120x200 | 19,30 | 23,80 | 28,30 | 29,30 | 36,50 | 44,40 | ||||||||||
| 150x250 | 24,20 | 30,10 | 35,80 | 37,20 | 46,50 | 57,00 | ||||||||||
Steel construction and steel roof manufacturing,
Automotive and automotive sub-industry manufacturing,
Construction of buildings such as housing,
Industrial type buildings, business centers,
Playgrounds and parking areas manufacturing,
Building exterior cladding manufacturing,
Drywall and decoration manufacturing
