Black Box Profile (HR)

Black Box Profile (HR)
Üretim Standartı	TS EN 10219-1
Genişlik Ölçüsü (Width Dimension)	20, 25, 30, 40, 50, 60, 65, 70, 80, 90, 100, 120, 140, 150, 180, 200, 250, 300, 400, 500
Kalınlık (Thickness Dimension)	Between 1,2 - 18,00 mm
Uzunluk (Length)	4000 mm - 18000 mm
Kalite (Quality)	S235JR, S275JR, S275J2 S355JR, S355J2

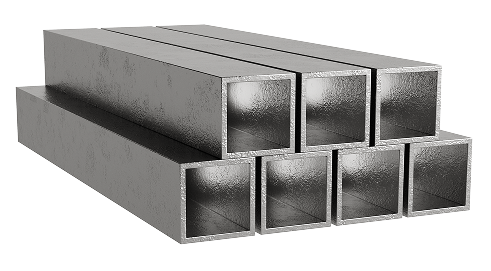

Black box profiles are hollow structural steel profiles with square or rectangular cross-section, usually produced from hot and cold rolled steel Flat with high welding technology. It is widely used in many sectors such as construction, machinery manufacturing, automotive, furniture. TS EN 10219-1, ASTM A-500 Standards, S235JR (ST37), S275JR (ST44), S355JR (ST52) S355J2H Quality, in sizes between 10*10 - 500*500 and thicknesses between 0.60 mm and 18 mm. It is 6 MT in length as standard. Special size production between 4 MT - 12 MT can also be made according to the project usage area.

Features of Black Box Profile
Material: They are usually made of steel.
Section: They can be square or rectangular.
Structure: It is hollow inside, combining lightness and durability.

Surface: They are usually surface untreated, raw materials.
Dimensions: They can be produced in different sizes.
Durability: They have high durability.

Advantages of Black Box Profile
Lightness: They are light in weight as a result of their hollow structure.
Durability: They have high durability.
Easy Processability: They can be easily cut, welded and shaped.
Economical: They are generally more economical than other structural materials.
Wide Usage Area :They can be used in many different sectors.

Siyah Kutu Profil																		TS EN 10219-1

Ebat(Size)	Et Kalınlığı (mm) Birim Ağırlık (kg / mt)
mm	0,60	0,70	0,80	0,90	1,00	1,20	1,50	2,00	2,50	3,00	4,00	5,00	6,00	6,30	7,10	8,00	10,00	12,00	14,00	16,00	18,00
10x10	0,17	0,20	0,23	0,25	0,28	0,32
15x15	0,27	0,31	0,35	0,39	0,43	0,52	0,63
20x20	0,36	0,42	0,48	0,54	0,59	0,70	0,86	1,12	1,51
25x25		0,53	0,60	0,68	0,75	0,89	1,10	1,44	1,64	1,89
30x30		0,64	0,73	0,82	0,90	1,08	1,34	1,75	2,15	2,39
35x35			0,85	0,97	1,07	1,27	1,57	2,07	2,54	2,86
40x40			0,97	1,09	1,21	1,44	1,81	2,38	2,93	3,33	4,09
50x50						1,84	2,28	3,01	3,72	4,28	5,51	6,56
60x60							2,75	3,64	4,50	5,22	6,76	8,13	9,82
70x70							3,23	4,26	5,29	6,16	8,02	9,70	11,80
80x80							3,62	4,89	6,07	7,10	9,28	11,30	13,20	13,50
90x90							4,08	5,52	6,86	8,04	10,50	12,80	15,10	15,50
100x100								6,15	7,64	8,99	11,70	14,20	17,00	17,50	19,40	21,40	25,60
110x110								6,78	8,44	9,93	19,30	23,80	28,30	29,30	36,50	44,40
120x120										10,80	14,20	17,40	20,70	21,40	23,80	26,40	31,80
125x125											14,90	18,30	21,70	22,40	27,70	33,40	33,40
140x140											16,80	20,50	24,50	25,40	28,30	31,40	38,10
150x150											18,00	22,10	26,40	27,40	30,50	33,90	41,30
160x160											19,20	23,80	28,30	29,30	32,70	36,50	44,40
180x180											21,80	26,80	32,10	33,30	37,20	41,50	50,70
200x200											24,20	29,90	35,80	37,20	41,60	46,50	57,00	72,83	84,27	95,51
220x220												33,20	39,60	41,20	46,10	51,50	63,20	80,48	93,19	105,70
250x250												38,30	45,20	47,90	53,70	60,30	74,50	91,94	106,56	120,99
260x260													47,10	49,10	56,00	61,60	75,80	95,76	111,02	126,08
300x300													55,10	57,80	64,90	72,80	90,20	111,05	128,86	146,47	163,87
350x350														66,90	75,10	84,20	104,00	130,16	151,15	171,94	192,54
400x400																96,70	120,00	149,27	173,44	197,42	221,20
450x450																	140,81	168,37	195,74	222,90	249,86
500x500																	156,74	187,48	218,03	248,38	278,52

Siyah Kutu Profil																			TS EN 10219-1

Ebat Et Kalınlığı (mm) Birim Ağırlık (kg / mt) (Size)
mm	0,60	0,70	0,80	0,90	1,00	1,20	1,50	2,00	2,50	3,00	4,00	5,00	6,00	6,30	8,00	10,00	12,00	14,00	16,00	18,00
10x20	0,27	0,31	0,36	0,40	0,43	0,52	0,63
10x25	0,31	0,36	0,41	0,45	0,50	0,59	0,75
10x30	0,37	0,42	0,48	0,54	0,60	0,71	0,87	1,12
15x20	0,32	0,37	0,42	0,47	0,52	0,61	0,75	0,97
15x25	0,37	0,42	0,48	0,54	0,59	0,70	0,86	1,12	1,51
15x30	0,40	0,47	0,53	0,61	0,68	0,83	0,99	1,29
15x40		0,59	0,67	0,75	0,82	0,97	1,19	1,53
20x25		0,48	0,55	0,61	0,67	0,80	0,98	1,28
20x30		0,53	0,61	0,68	0,75	0,89	1,10	1,44	1,64	1,89
20x35		0,59	0,67	0,75	0,82	0,97	1,22	1,53
20x40			0,73	0,82	0,90	1,08	1,34	1,75	2,15	2,39
20x50				0,97	1,07	1,27	1,57	2,07	2,54	2,86
25x30				0,75	0,82	0,97	1,19	1,53
25x35			0,73	0,82	0,91	1,09	1,34	1,75	2,15	2,39
25x40			0,79	0,89	0,99	1,18	1,46	1,91	2,34	2,63
25x50				1,04	1,15	1,37	1,69	2,22	2,74	3,10
30x35				0,89	0,99	1,18	1,46	1,91	2,34	2,63
30x40			0,85	0,95	1,07	1,27	1,57	2,07	2,54	2,86
30x50			0,97	1,09	1,22	1,44	1,81	2,38	2,93	3,33	4,09
30x60						1,65	2,05	2,69	3,33	3,80	4,88
30x70						1,84	2,28	3,01	3,72	4,28	5,51
40x50						1,65	2,05	2,69	3,33	3,80	4,88
40x60						1,84	2,28	3,01	3,72	4,28	5,51	6,56
40x80							2,75	3,64	4,50	5,22	6,76	8,13
40x100							3,23	4,26	5,29	6,16	8,02	9,70
50x60							2,52	3,32	4,11	4,75	6,14
50x70							2,75	3,64	4,50	5,22	6,76	8,13
50x90							3,23	4,26	5,29	6,16	8,02	9,70
50x100							3,40	4,58	5,68	6,63	8,65	10,50
50x150								6,15	7,64	8,99	11,80	14,40	17,00
60x80							3,23	4,26	5,29	6,16	8,02	9,70	11,80
60x100							3,62	4,89	6,07	7,10	9,28	11,30	13,20	13,50
60x120							4,08	5,52	6,86	8,04	10,50	12,80	15,10	15,50
80x100							4,08	5,52	6,86	8,04	10,50	12,80	15,10	15,50
80x120										8,96	11,70	14,40	17,00	17,50	21,40
80x140										9,93	13,00	16,00	18,90	19,40	23,90
80x160										10,80	14,20	17,40	20,70	21,40	26,40	31,80
100x150											14,90	18,30	21,70	22,40	27,70	33,40
100x200											17,90	22,10	26,40	27,40	33,90	41,30
100x300											24,20	29,90	35,80	37,20	46,50	57,00
120x200											19,30	23,80	28,30	29,30	36,50	44,40
150x250											24,20	30,10	35,80	37,20	46,50	57,00	72,83
150x300													40,50	42,20	52,80	64,80	82,99	95,42	108,25
200x300											30,50	37,80	42,20	47,10	59,10	72,70	91,94	106,56	120,99
200x400											36,70	45,60	54,70	57,00	71,60	88,40	111,05	128,86	146,47	163,87
250x400											39,90	49,60	59,30	61,75	77,60	88,40	120,60	140,00	159,21	178,21
250x450														66,90	84,20	104,00	130,16	151,15	171,94	192,54
300x500														76,90	96,70	120,00	149,27	173,44	197,46	221,20

Steel construction and steel roof manufacturing, Automotive and automotive sub-industry, Whiteware manufacturing, Electrical household appliances manufacturing, Furniture manufacturing, Steel goods manufacturing, Merchandising decoration manufacturing, Agriculture and machinery industry manufacturing, Housing, industrial type building, Business center, Shipbuilding, Traffic sign and highway equipment manufacturing, Playgrounds and parking areas manufacturing, Wrought iron manufacturing, Elevator manufacturing, Building exterior cladding manufacturing, Drywall and decoration manufacturing
