| Galvanized Pipe | |
|---|---|
| Üretim Standartı | TS EN 10219-1 |
|
Genişlik Ölçüsü (Width Dimension) |
16, 21, 25, 27, 32, 34, 38, 42, 48, 51, 60, 70, 76, 89, 102, 114, 127 |
|
Kalınlık (Thickness Dimension) |
Between 1,00 - 4,00 mm |
|
Uzunluk (Length) |
4000 mm – 9000 mm |
|
Kalite (Quality) |
DX51D+Z |

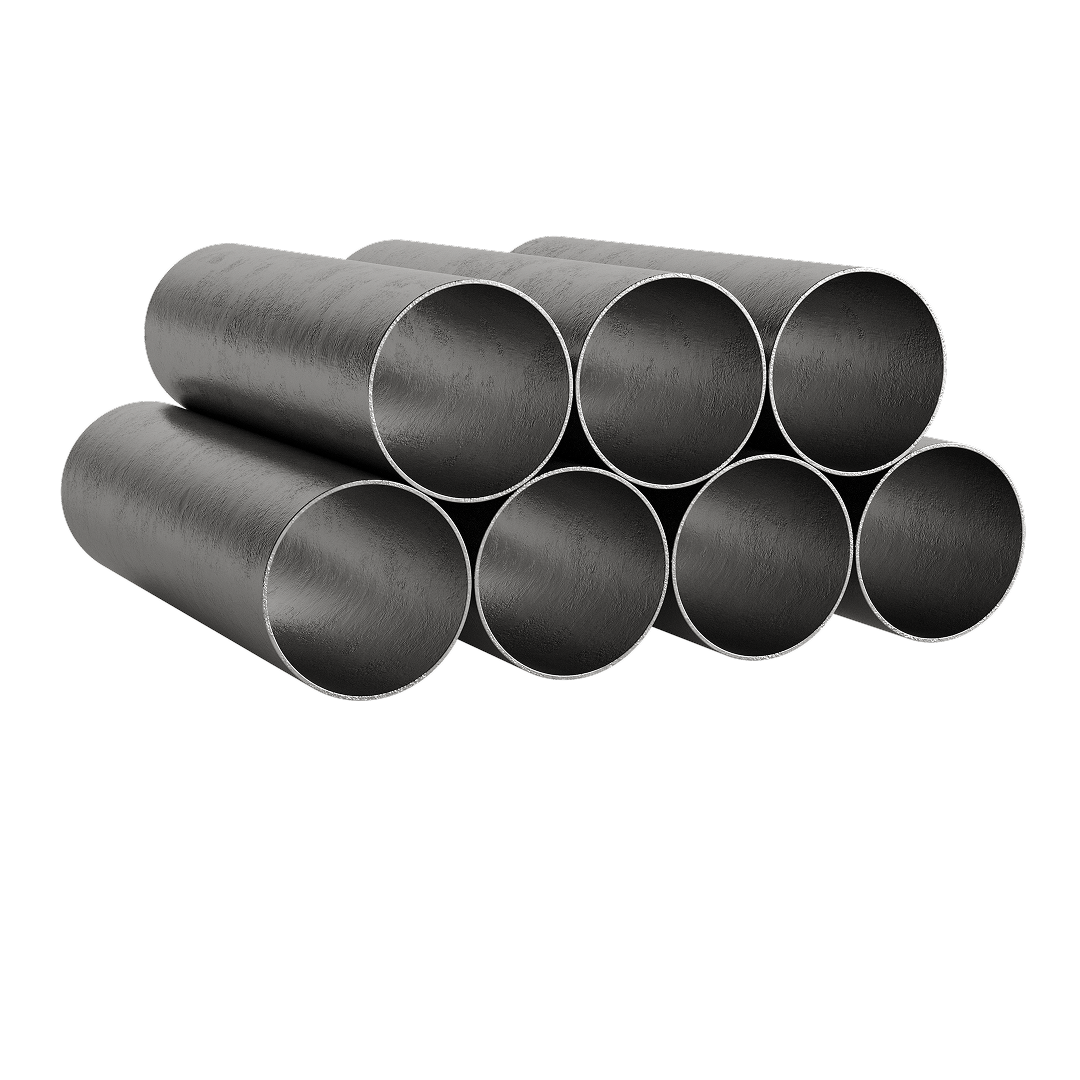

Galvanized steel pipe is steel pipe coated with zinc to increase its resistance to corrosion. This coating process extends the life of the steel pipe and makes it possible to use it in various fields. Galvanized pipe is a type of steel pipe used for various structural purposes. It is often used to form the skeleton of buildings, bridges, towers and other structures. It is also used in machinery manufacturing, the automotive sector and other industrial applications. Galvanized Pipe produced from DX51D+Z Quality Flat metal in TS EN 10219-1 Standards with High welding technology; It is produced in diameters between 21.00 mm - 127.00 mm and thickness between 1.00 mm - 4.00 mm. It is 6 MT in length as standard. Special size production between 4 MT - 12 MT mm can also be made according to the project status.
Advantages of Galvanized Steel Pipe:
Corrosion Resistance: The zinc coating protects the steel pipe against corrosion and prolongs its life. This is particularly important for use outdoors and in humid conditions.
Economical: Galvanized steel pipes are more economical than other anti-corrosion methods.
Easy Processability: Galvanized steel pipes can be easily cut, welded and formed.
Long Lifespan: When used in the right conditions, galvanized steel pipes can have a very long lifespan.
| Galvaniz Boru | TS EN 10219-1 | ||||||
| Dış Çap | Et Kalınlığı / Birim Ağırlık (kg/mt) | ||||||
| mm | 0,9 | 1 | 1,2 | 1,5 | 2 | 2,5 | 3 |
| 21 | 0,45 | 0,49 | 0,59 | 0,72 | 0,94 | 1,14 | 1,35 |
| 22 | 0,47 | 0,52 | 0,62 | 0,76 | 0,99 | 1,2 | |
| 25 | 0,53 | 0,59 | 0,7 | 0,87 | 1,13 | 1,39 | |
| 26,9 | 0,58 | 0,64 | 0,76 | 0,94 | 1,23 | 1,51 | 1,77 |
| 28 | 0,6 | 0,67 | 0,79 | 0,98 | 1,28 | 1,57 | 1,84 |
| 30 | 0,65 | 0,72 | 0,85 | 1,05 | 1,38 | 1,7 | 2 |
| 32 | 0,69 | 0,77 | 0,91 | 1,13 | 1,48 | 1,82 | 2,15 |
| 33,7 | 0,73 | 0,81 | 0,96 | 1,19 | 1,56 | 1,92 | 2,27 |
| 35 | 0,76 | 0,84 | 1 | 1,24 | 1,63 | 2 | 2,37 |
| 38 | 0,82 | 0,91 | 1,09 | 1,35 | 1,78 | 2,19 | 2,59 |
| 40 | 0,87 | 0,96 | 1,15 | 1,42 | 1,87 | 2,31 | 2,74 |
| 42 | 0,91 | 1,01 | 1,21 | 1,5 | 1,97 | 2,44 | 2,89 |
| 45 | 0,98 | 1,09 | 1,3 | 1,61 | 2,12 | 2,62 | 3,11 |
| 48 | 1,05 | 1,16 | 1,38 | 1,73 | 2,27 | 2,81 | 3,33 |
| 50 | 1,09 | 1,2 | 1,44 | 1,79 | 2,37 | 2,93 | 3,48 |
| 51 | 1,11 | 1,23 | 1,47 | 1,83 | 2,42 | 2,99 | 3,55 |
| 57 | 1,38 | 1,65 | 2,05 | 2,71 | 3,36 | 4 | |
| 60 | 1,45 | 1,74 | 2,16 | 2,86 | 3,55 | 4,22 | |
| 63 | 1,53 | 1,83 | 2,28 | 3,01 | 3,72 | 4,44 | |
| 70 | 2,03 | 2,53 | 3,35 | 4,16 | 4,96 | ||
| 72 | 2,09 | 2,6 | 3,45 | 4,28 | 5,1 | ||
| 76 | 2,21 | 2,75 | 3,65 | 4,53 | 5,4 | ||
| 80 | 2,9 | 3,85 | 4,78 | 5,7 | |||
| 83 | 3,01 | 3,99 | 4,96 | 5,92 | |||
| 89 | 3,24 | 4,29 | 5,33 | 6,36 | |||
| 96 | 3,49 | 4,64 | 5,76 | 6,88 | |||
| 101,6 | 3,64 | 4,83 | 6,01 | 7,18 | |||
| 108 | 3,94 | 5,22 | 6,5 | 7,76 | |||
| 114 | 4,17 | 5,52 | 6,87 | 8,21 | |||
| 120 | 5,82 | 7,24 | 8,66 | ||||
| 127 | 6,16 | 7,68 | 9,17 | ||||
Manufacture of space roof systems, Building scaffolding and formwork systems, Steel construction and steel roof manufacturing, Agriculture sector, greenhouse cultivation, irrigation purposes, Automotive and automotive sub-industry, White goods manufacturing, Electrical appliances, Furniture manufacturing, Steel goods manufacturing, Bicycle manufacturing, Textile manufacturing, Industrial agriculture and machinery industry manufacturing, Shipbuilding manufacturing, Traffic sign and highway equipment manufacturing
