CHECKERED PLATE / ALUMINUM FLAT | |
---|---|
Üretim Standartı | DIN 59220 |
Genişlik Ölçüsü (Width Dimension) |
1000 mm - 1500 mm |
Kalınlık (Thickness Dimension) |
Between 1,50 - 10,00 mm |
Uzunluk (Length) |
1000 mm – 6000 mm |
Kalite (Quality) |
S235JR, S355JR |

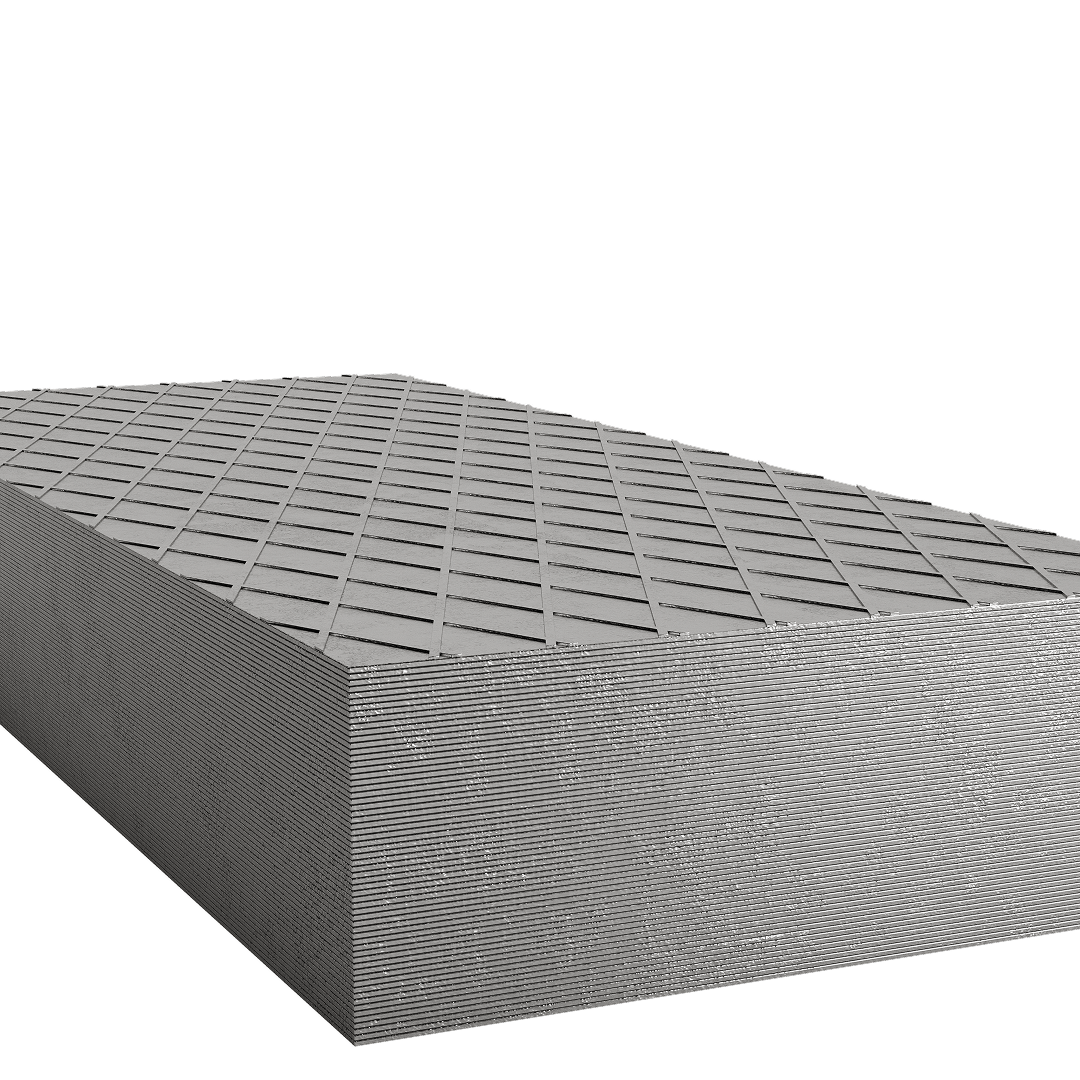

Checkered Flat / Aluminum Flat is a type of Flat with diamond slice and tear-like patterns on its surface. These patterns increase safety by reducing the slipperiness of the Flat and at the same time provide an aesthetic appearance. It is usually made of steel.
It is manufactured by passing hot rolled flat steels through patterned molds. It is manufactured in S235JR qualities, thicknesses between 1.50 - 10,000, widths between 1000 mm - 1500 mm and lengths between 1000 mm - 6000 mm can be cut to the desired dimensions.
Features of Checkered Flat:
Non-Slip: The patterns on the surface prevent slipping, so it is especially safe to use on floors, stairs and ramps.
Durability: It is made of steel and therefore has high strength and durability.
Aesthetic Appearance: The patterns on the surface enhance the appearance of the Flat and allow it to be used for decorative purposes.
Easy Processability: It can be easily shaped by processes such as cutting, bending and welding.
BAKLAVALI SACLAR (CHECKERED PLATE / ALUMINUM FLAT) | DIN 59220 | |||||||
Ebat (mm) | Kalınlık (mm) | |||||||
---|---|---|---|---|---|---|---|---|
2,00/3,00 | 3,00/4,00 | 4,00/5,00 | 5,00/6,00 | 6,00/7,00 | 7,00/8,00 | 8,00/9,00 | 9,00/10,00 | |
1000x2000 | 39,00 | 55,00 | 71,00 | 86,00 | 102,00 | 118,00 | 133,00 | 149,00 |
1200x2400 | 57,00 | 79,00 | 102,00 | 124,00 | 147,00 | 170,00 | 192,00 | 215,00 |
1250x2500 | 61,00 | 86,00 | 110,00 | 135,00 | 159,00 | 184,00 | 209,00 | 233,00 |
1500x3000 | 88,00 | 124,00 | 159,00 | 194,00 | 230,00 | 265,00 | 300,00 | 336,00 |
1500x6000 | 177,00 | 247,00 | 318,00 | 389,00 | 459,00 | 530,00 | 601,00 | 671,00 |
On the steps of industrial fire escapes,
On platforms,
On ramps,
In the machine industry,
Land transport vehicles,
On the walkways of ships and factories,
