| GALVANIZED FLAT | |
|---|---|
| Üretim Standartı | TS EN 10346 |
|
Genişlik Ölçüsü (Width Dimension) |
1000 mm – 1500 mm |
|
Kalınlık (Thickness Dimension) |
Between 0,50 - 4,00 mm |
|
Uzunluk (Length) |
1000 mm – 4000 mm |
|
Kalite (Quality) |
1311, DX51D+Z, DX51D+Z275, DX51D+Z350, DX51D+Z400 |

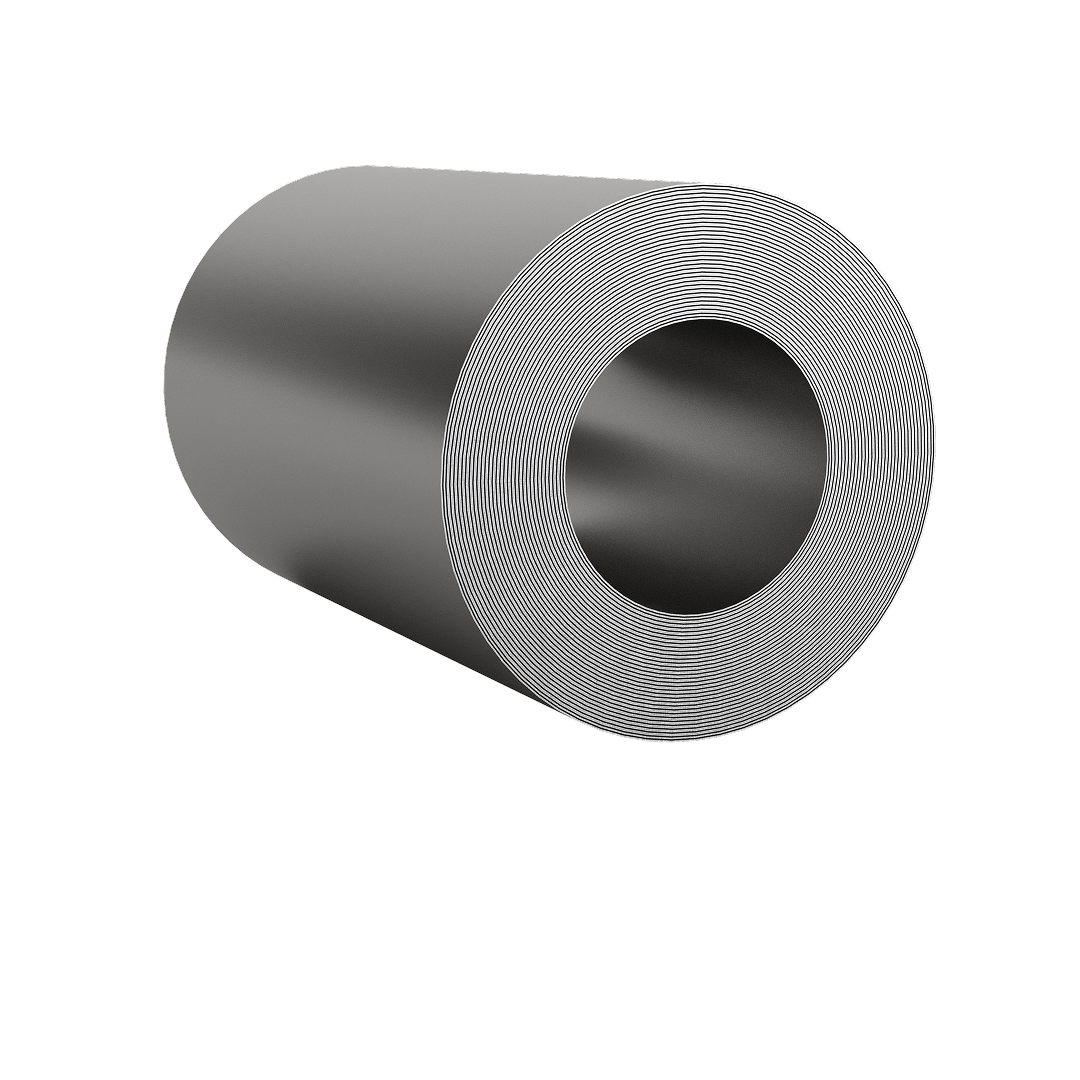

Galvanized Flat is a product manufactured by coating steel Flat with zinc to protect it against corrosion. This coating process extends the life of the Flat and allows it to be used in various industrial applications.
1311, DX51D+Z quality is produced as 100 Gr / M² galvanized coating in roll form. According to demand, 275 Gr / M² galvanized coating can also be provided. Thickness between 0.50 mm - 4.00 mm, width between 1000 mm - 1500 mm and length between 1000 mm - 4000 mm can be manufactured as Galvanized and Painted.
Features of Galvanized Flat:
Corrosion Resistance: The zinc coating protects the steel against rust and significantly extends the lifespan of the Flat.
Durability: Galvanized Flat has high strength and durability properties.
Easy Processability: It can be easily shaped by processes such as cutting, bending and welding.
Aesthetic Appearance: Zinc coating gives the surface of the Flat a shiny and aesthetic appearance.
Economical: It provides cost benefits with its long service life.
| Kalınlık (mm) | Ebat (mm) | |||||
|---|---|---|---|---|---|---|
| 1000x2000 | 1200x2400 | 1250x2500 | 1500x3000 | 1500x6000 | 1500x12000 | |
| 0,40 | 6,00 | 9,00 | 10,00 | |||
| 0,50 | 8,00 | 11,00 | 12,00 | |||
| 0,60 | 9,00 | 14,00 | 15,00 | |||
| 0,70 | 11,00 | 16,00 | 17,00 | |||
| 0,80 | 13,00 | 18,00 | 20,00 | |||
| 0,90 | 14,00 | 20,00 | 22,00 | |||
| 1,00 | 16,00 | 23,00 | 25,00 | 35,00 | ||
| 1,20 | 19,00 | 27,00 | 29,00 | 42,00 | ||
| 1,50 | 24,00 | 34,00 | 37,00 | 53,00 | ||
| 2,00 | 31,00 | 45,00 | 49,00 | 71,00 | ||
| 2,50 | 39,00 | 57,00 | 61,00 | 88,00 | ||
| 3,00 | 47,00 | 68,00 | 74,00 | 106,00 | 212,00 | |
| 3,50 | 55,00 | 79,00 | 86,00 | 124,00 | 247,00 | |
| 4,00 | 63,00 | 90,00 | 98,00 | 141,00 | 283,00 | 565,00 |
Automotive and automotive supply industry,
Whiteware Manufacturing,
Building Roofing,
Building interior and exterior side cladding,
Building and parking lot ventilation equipment manufacturing,
Road barrier manufacturing,
Elevator manufacturing,
Traffic Sign and highway equipment Manufacturing
