| UPE Iron | |
|---|---|
| Üretim Standartı | TS EN 10279 |
|
Genişlik Ölçüsü (Width Dimension) |
80, 100, 120, 140, 160, 180, 200, 220, 240, 270, 300, 330, 360, 400 |
|
Uzunluk (Length) |
4000 mm - 18000 mm |
|
Kalite (Quality) |
S235JR, S275JR, S275J2 S355JR, S355J2 |

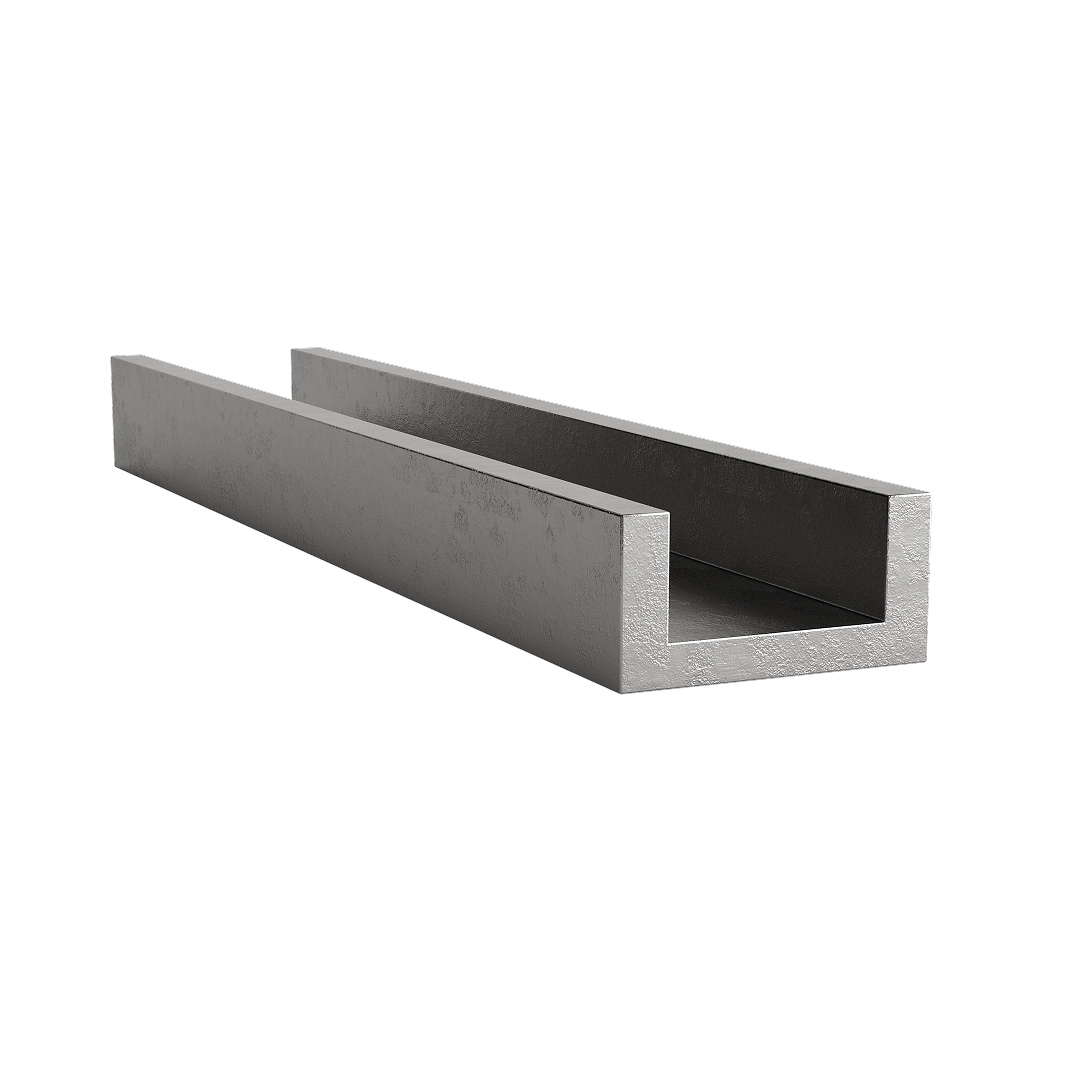

UPE iron is a structural steel profile with a “U” shaped rectangular cross-section, which stands for “Regular Profile U”. These profiles are widely used in construction, manufacturing and various industrial applications and are used to provide structural support, carry loads and create connection points.
S235JR (ST37), S275JR (ST44), S355JR (ST52), S275J2, S355J2 are hot formed structural profiles produced in quality. The standard is 6 MT and 12 MT. Special size production can also be made according to the desired size according to the project situation.
Features of UPE Iron
• Form: It consists of two “U” shaped sidewall edges and a base edge.
•Material: They are usually made of steel.
•Dimensions: Produced in different heights, widths and wall thicknesses.
•Stability: It has high strength and durability features.
Advantages of UPE Iron
• High Strength: It offers high strength with its U" shape. This increases the capacity to carry heavy loads.
• Balance: The “U” shape gives the structure balance and stability.
• Easy Processability It can be easily shaped by processes such as cutting, drilling and welding.
• Diversity: Available in different sizes to suit a variety of applications.
• Economical: It is generally more economical than other structural steel profiles.
| UPE Profiller | TS 910 | ||||
| UPE Profiles | DIN 1025 | ||||
| Kısa İşareti (Short Mark) |
Ağırlık (Weight) |
Boyutlar (mm) (Dimensions)(mm) |
|||
| U | kg/mt | h | b | s | t |
| 80 | 7,9 | 80 | 50 | 4,0 | 7,0 |
| 100 | 9,8 | 100 | 55 | 4,5 | 7,5 |
| 120 | 12,1 | 120 | 60 | 5,0 | 8,0 |
| 140 | 14,5 | 140 | 65 | 5,0 | 9,0 |
| 160 | 17,0 | 160 | 70 | 5,5 | 9,5 |
| 180 | 19,7 | 180 | 75 | 5,5 | 10,5 |
| 200 | 22,8 | 200 | 80 | 6,0 | 11,0 |
| 220 | 26,6 | 220 | 85 | 6,5 | 12,0 |
| 240 | 30,2 | 240 | 90 | 7,0 | 12,5 |
| 270 | 35,2 | 270 | 95 | 7,5 | 13,5 |
| 300 | 44,4 | 300 | 100 | 9,5 | 15,0 |
| 330 | 53,2 | 330 | 105 | 11,0 | 16,0 |
| 360 | 61,2 | 360 | 110 | 12,0 | 17,0 |
| 400 | 72,2 | 400 | 115 | 13,5 | 18,0 |
Steel construction and steel roof manufacturing,
Construction of buildings such as residential,
Industrial and business centers,
Restoration of reinforced concrete and historical stone structures,
Agricultural and machinery industry manufacturing,
Manufacturing of road and railway vehicles,
Railings of bridges and overpasses,
Shipbuilding manufacturing,
Elevator manufacturing,
Traffic signs and highway equipment manufacturing,
