| TRAPEZE FLAT/ TRAPEZE UNDER CONCRETE | |
|---|---|
| Üretim Standartı | TS EN 10346 |
|
Genişlik Ölçüsü (Width Dimension) |
860 mm – 1000 mm |
|
Kalınlık (Thickness Dimension) |
Between 0,40 - 1,00 mm |
|
Uzunluk (Length) |
1000 mm – 13000 |
|
Kalite (Quality) |
1311, DX51D+Z |

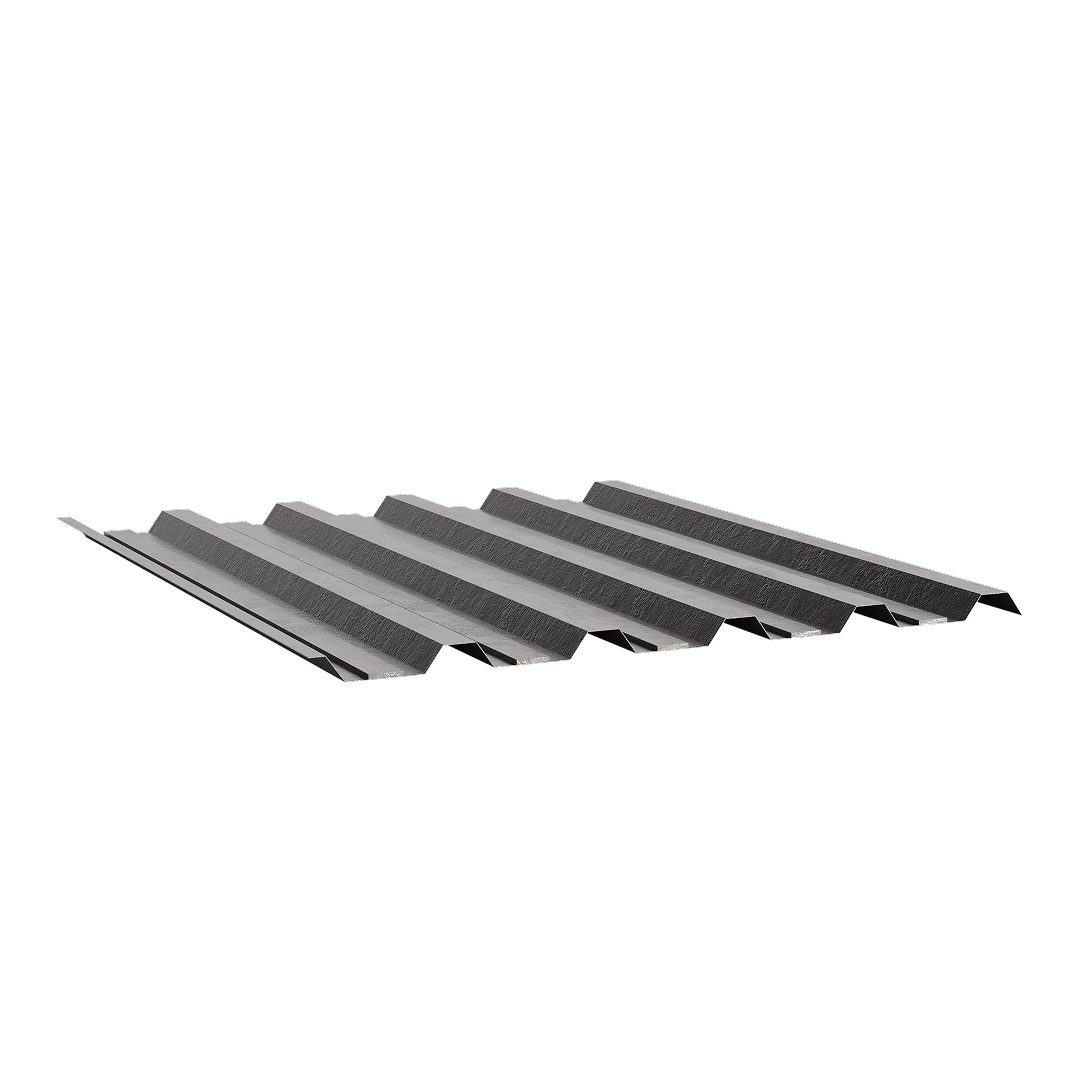

Steel Trapeze Flat is a material that is frequently used in the construction sector, especially preferred for roof and facade cladding. It has a high strength and durable structure owing to its trapezoidal shape. It is usually made of galvanized steel, which makes it resistant to corrosion.
1311, DX51D+Z quality, 27/200 and 38/151 form, 100 Gr / M² galvanized coating, straight corrugated.0.40 mm - 1.00 mm thickness, 860 mm - 1000 mm width and 1000 mm - 13000 mm desired size length, Galvanized and Painted production can be made.
Features of Steel Trapeze Flat:
Resistance: It has a high load carrying capacity owing to its trapeze shape.
Durability: Since it is made of galvanized steel, it is resistant to rust and has a long service life.
Lightness: It is a lightweight material, which allows for easy installation.
Aesthetic Appearance: It gives structures a modern and aesthetic appearance.
Diversity: It can be manufactured in different colors and patterns.
Economical: It is more economical than other coating materials.
| YAYLI YÜK KAPASİTESİ(TRAPEZE FLAT) (KG/M2) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| AŞIK ARALIĞI (m) | KALINLIK (mm) | ||||||||
| 0,40 | 0,45 | 0,50 | 0,55 | 0,65 | 0,75 | 0,85 | 0,95 | 1,05 | |
| 1.00 | 473 | 533 | 593 | 652 | 770 | 889 | 1009 | 1127 | 1187 |
| 1.10 | 391 | 440 | 490 | 538 | 637 | 734 | 883 | 931 | 981 |
| 1.20 | 329 | 370 | 411 | 452 | 536 | 617 | 701 | 782 | 824 |
| 1.40 | 241 | 272 | 302 | 332 | 393 | 453 | 515 | 575 | 605 |
| 1.50 | 211 | 237 | 264 | 290 | 343 | 396 | 449 | 501 | 528 |
| 1.80 | 146 | 165 | 183 | 201 | 238 | 275 | 312 | 348 | 367 |
| 2.00 | 119 | 134 | 149 | 163 | 193 | 223 | 252 | 282 | 297 |
| 2.20 | 98 | 110 | 123 | 135 | 160 | 184 | 209 | 233 | 254 |
| 2.40 | 82 | 93 | 103 | 113 | 134 | 155 | 175 | 196 | 205 |
| 2.50 | 76 | 86 | 95 | 104 | 124 | 142 | 162 | 181 | 190 |
| 2.80 | 61 | 68 | 76 | 83 | 98 | 114 | 129 | 144 | 152 |
| 3.00 | 53 | 59 | 66 | 72 | 86 | 99 | 112 | 125 | 132 |
| 1 PLAKA TRAPEZ AĞIRLIĞI | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| UZUNLUK (860 mm GENİŞLİK) | KALINLIK (mm) | ||||||||
| 0,40 | 0,45 | 0,50 | 0,55 | 0,60 | 0,70 | 0,80 | 0,90 | 1,00 | |
| 2,00 mt | 6,40 | 7,20 | 8,00 | 8,80 | 9,60 | 11,20 | 12,80 | 14,40 | 16,00 |
| 2,50 mt | 8,00 | 9,00 | 10,00 | 11, 00 | 12,00 | 14,00 | 16,00 | 18,00 | 20,00 |
| 3,00 mt | 9,60 | 10,80 | 12,00 | 13,20 | 14,40 | 16,80 | 19,20 | 21,60 | 24,00 |
| 3,50 mt | 11,20 | 12,60 | 14,00 | 15,40 | 16,80 | 19,60 | 22,40 | 25,20 | 28,00 |
| 4,00 mt | 12,80 | 14,40 | 16,00 | 17,60 | 19,20 | 22,40 | 25,60 | 28,80 | 32,00 |
| 4,50 mt | 14,40 | 16,20 | 18,00 | 19,80 | 21,60 | 25,20 | 28,80 | 32,40 | 36,00 |
| 5,00 mt | 16,00 | 18,00 | 20,00 | 22,00 | 24,00 | 28,00 | 32,00 | 36,00 | 40,00 |
| 5,50 mt | 17,60 | 19,80 | 22,00 | 24,20 | 26,40 | 30,80 | 35,20 | 39,60 | 44,00 |
| 6,00 mt | 19,20 | 21,60 | 24,00 | 26,40 | 28,80 | 33,60 | 38,40 | 43,20 | 48,00 |
To enclose structures under construction,
Roof and facade coatings of buildings,
Under the concrete of mezzanines and floors,
