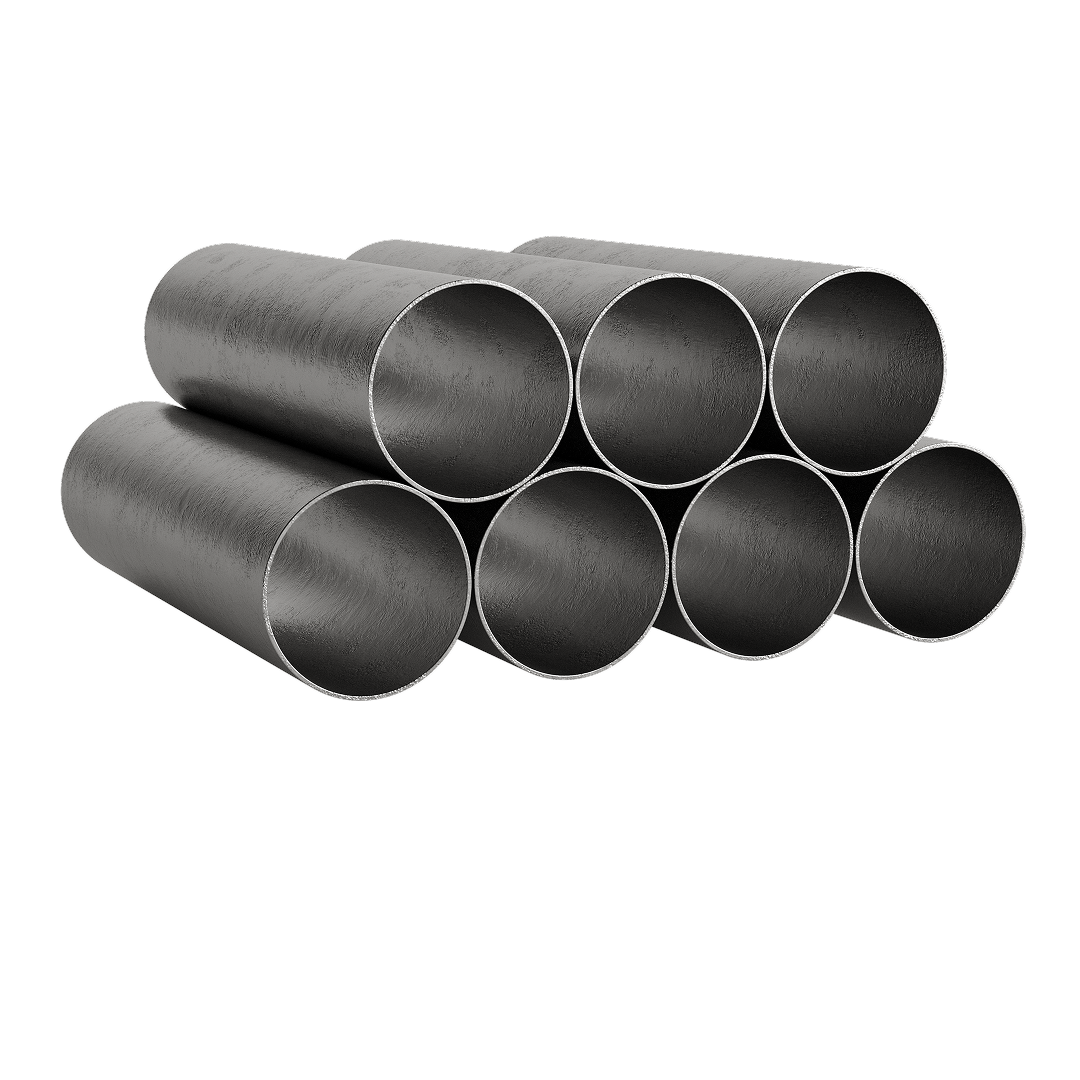

NATURAL GAS PIPE
NATURAL GAS PIPE
Üretim Standartı EN 10217-2
Kalınlık
(Thickness Dimension)
Between 2,60 - 13,00 mm
Dış Çap
(Outer Diameter)
21,3 – 323,9 mm
Uzunluk
(Length)
Between 4000 - 14000 mm
Kalite
(Quality)
P195GH, P235GH, P265GH, 16Mo3

Natural Gas Pipes

Natural gas pipes are pipe systems that ensure the safe transportation of natural gas from its production site to the point of consumption. Due to the flammable and explosive nature of natural gas, these pipes are of great importance in terms of both safety and efficiency.

They are manufactured in compliance with API 5L PSL1, API 5L PSL2, TS EN ISO 3183, and API 5CT standards. The pipes may come with protective oil, polypropylene coating, polyethylene coating, or water-based epoxy paint coatings. They are produced with plain ends or beveled ends, in diameters ranging from 1/2” to 12” (21.3 – 323.9 mm). The standard length is 6 meters, but depending on the project requirements, special lengths between 4 and 12 meters can also be produced.

Features of Natural Gas Pipes:

  • Material: They are generally made of steel.

  • Dimensions: They can be manufactured in various diameters and thicknesses. The pipe diameter is determined based on the amount of gas to be transported and the pressure level.

  • Pressure Resistance: They must withstand high pressure, as natural gas is transported under high pressure.

  • Corrosion Resistance: They must be resistant to corrosion. Natural gas pipes can be installed underground or above ground, so corrosion resistance is essential.

  • Leak Tightness: They must be leakproof. A natural gas leak can lead to serious hazards, which makes the leak tightness of the pipes critically important.

Doğalgaz Borusu TS EN ISO 3183
  TS EN 10025-1/2
Anma Çapı (inch/mm) Et Kalınlığı (mm) Birim Ağırlık (kg/mt)
Ölçü Et Kalınlığı (mm) Kg/mt
1/2" (21,30) 2,8 1,30
3/4" (26,70) 2,9 1,73
1" (33,40) 3,4 2,55
1 ¼" (42,20) 3,6 3,47
1 ½" (48,30) 3,7 4,13
2" (60,30) 3,9 5,50
2 ½" (73,00) 5,2 8,81
3" (88,90) 5,5 11,47
4" (114,30) 6,0 16,25
5" (141,30) 6,6 22,23
6" (168,30) 7,1 28,61
8" (219,10) 8,2 43,23
10" (273,00) 9,3 61,31
12" (323,90) 9,5 74,67

In natural gas pipelines,
In LPG installations,
In petroleum transmission lines,
In oil well drilling,
