HRP FLAT | |
---|---|
Üretim Standartı | EN 10111:2008 |
Genişlik Ölçüsü (Width Dimension) |
1000 mm - 1500 mm |
Kalınlık (Thickness Dimension) |
Between 2,00 - 100,00 mm |
Uzunluk (Length) |
1000 mm – 6000 mm |
Kalite (Quality) |
DD11 ,DD13 |

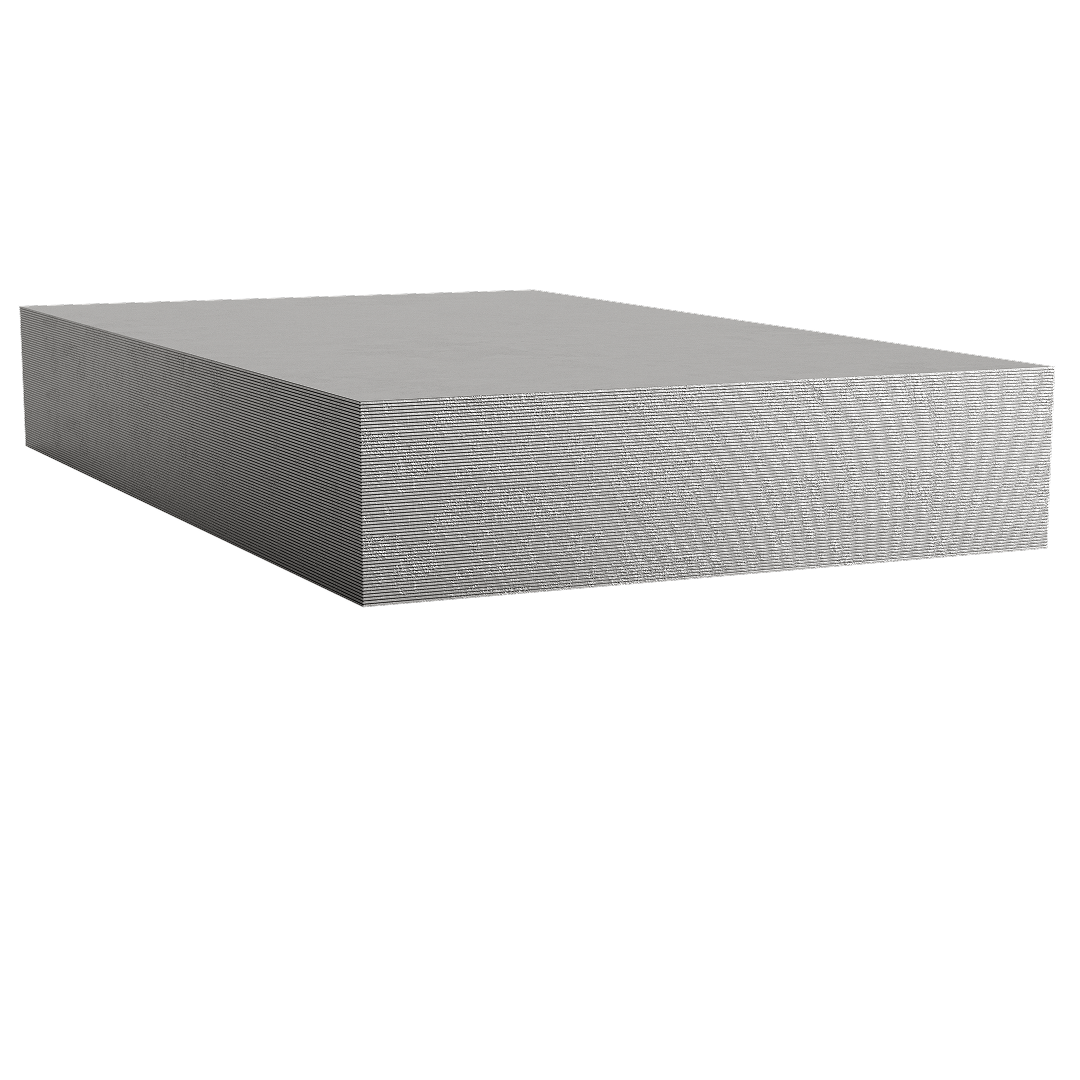

HRP Flat is an abbreviation for “Hot Rolled Pickled” and stands for hot rolled, pickled Flat. This type of Flat, which is widely used in the steel industry, is dipped in an acid bath after hot rolling to remove oxide and scale layers on its surface. This process cleans the surface of the Flat and makes it smoother.
It is produced in DD11 (6222), DD13 (6224) qualities, thickness between 2,00 - 10,000, width between 1000 mm - 1500 mm and 1000 mm - 6000 mm, length cutting can be performed in desired dimensions.
Features of HRP Flat:
Surface Cleaning: The acid cleaning process removes oxide and scale layers on the surface, resulting in a cleaner and smoother surface.
Hot Rolled: The hot rolling process is carried out by forming the Flat at high temperature, which improves the mechanical properties of the Flat.
Wide Usage Area: It can be used in many different sectors as it can be produced in different thicknesses and sizes.
HRP SACLAR | EN 10111:2008 | |||||
Kalınlık (mm) | Ebat (mm) | |||||
---|---|---|---|---|---|---|
1000x2000 | 1200x2400 | 1250x2500 | 1500x3000 | 1500x6000 | 1500x12000 | |
2,00 | 31,00 | 45,00 | 49,00 | 71,00 | ||
2,50 | 39,00 | 57,00 | 61,00 | 88,00 | ||
3,00 | 47,00 | 68,00 | 74,00 | 106,00 | 212,00 | |
3,50 | 55,00 | 79,00 | 86,00 | 124,00 | 247,00 | |
4,00 | 63,00 | 90,00 | 98,00 | 141,00 | 283,00 | 565,00 |
4,50 | 71,00 | 102,00 | 110,00 | 159,00 | 318,00 | 636,00 |
5,00 | 79,00 | 113,00 | 123,00 | 177,00 | 353,00 | 707,00 |
6,00 | 94,00 | 136,00 | 147,00 | 212,00 | 424,00 | 848,00 |
7,00 | 110,00 | 158,00 | 172,00 | 247,00 | 495,00 | 989,00 |
8,00 | 126,00 | 181,00 | 196,00 | 283,00 | 565,00 | 1.130,00 |
10,00 | 157,00 | 226,00 | 245,00 | 353,00 | 707,00 | 1.413,00 |
Automotive Industry manufacturing,
Kitchen utensils manufacturing,
LPG cylinder manufacturing,
Pipe - Profile manufacturing,
