TE Iron | |
---|---|
Üretim Standartı | TS EN 10055 |
Uzunluk (Length) |
|
Kalite (Quality) |
S235JR, S275JR, S355JR |

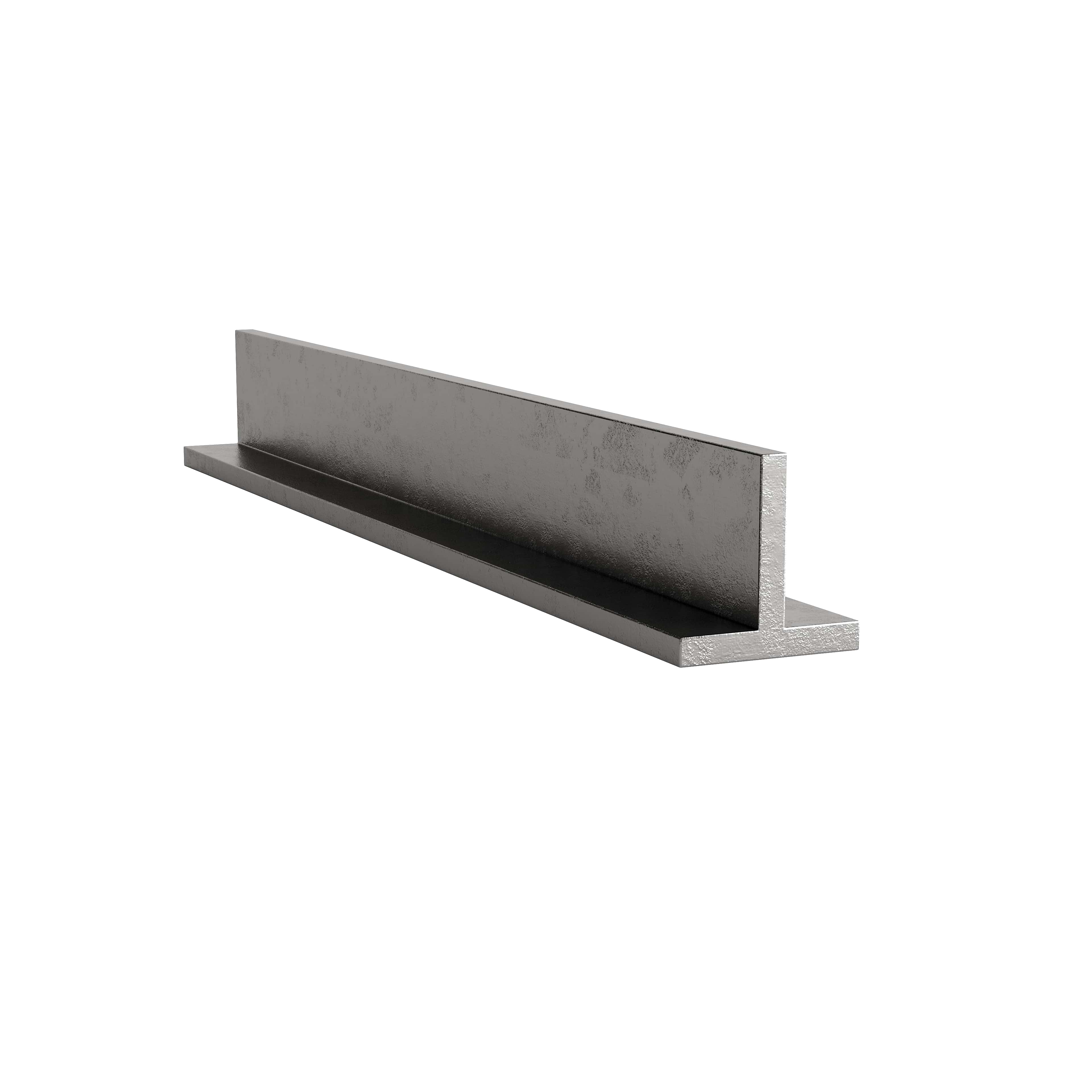

T iron is a type of structural steel profile with a "T" shaped cross section. It is widely used in construction, manufacturing and various industrial applications. T irons re generally used in structural systems, frames, connection points and support elements of buildings. S235JR (ST37), S275JR(ST37), S355JR(ST52) Quality, hot formed structural profiles produced. The standard is 6 MT. Special size production can also be made according to the desired size according to the project situation.
Features of T Iron:
Form: It has a “T” shaped cross section. This form ensures high strength and stability.
Material: They are usually made of carbon steel.
Dimensions: Dimensions are determined by various parameters such as width, height and thickness. Different sizes of T irons are suitable for different applications.
Weight: T irons have varying weights according to their size. This is an important factor to consider in project calculations.
Advantages of the T Iron:
High Strength: It offers high strength through its “T ” shape. This feature increases the capacity to carry heavy loads.
Balance: The “T” shape gives the structure balance and stability.
Easy Processability: It can be easily shaped by processes such as cutting, drilling and welding.
Diversity: Available in different sizes to suit a variety of applications.
Economical: It is generally more economical than other structural steel profiles.
T Profiller | TS EN 10055 | |||
T Profiles | TS EN 10025-1/2 | |||
Kısa İşareti (Short Mark) |
Boyutlar (mm) (Dimensions) (mm) |
Ağırlık (Weight) |
||
T | h | b | s | kg/m |
20 | 20 | 20 | 3 | 0,87 |
25 | 25 | 25 | 3,5 | 1,27 |
25 | 25 | 25 | 4,5 | 1,61 |
30 | 30 | 30 | 4 | 1,76 |
30 | 30 | 30 | 5 | 2,16 |
35 | 35 | 35 | 4,5 | 2,31 |
35 | 35 | 35 | 5,5 | 2,78 |
40 | 40 | 40 | 5 | 2,94 |
40 | 40 | 40 | 6 | 3,49 |
45 | 45 | 45 | 6,5 | 4,26 |
50 | 50 | 50 | 6 | 4,44 |
50 | 50 | 50 | 7 | 5,11 |
60 | 60 | 60 | 8 | 7,03 |
70 | 70 | 70 | 9 | 9,26 |
80 | 80 | 80 | 10 | 11,8 |
90 | 90 | 90 | 10 | 13,4 |
100 | 100 | 100 | 11 | 16,4 |
Machinery Industry,
Steel Construction,
Automotive Industry
