| IPE Steel | |
|---|---|
| Üretim Standartı | TS EN 10024 |
|
Genişlik Ölçüsü (Width Dimension) |
80, 100, 120, 140, 160, 180, 200, 220, 240, 260, 280, 300, 320, 340, 380, 400, 450, 500 |
|
Uzunluk (Length) |
4000 mm - 18000 mm |
|
Kalite (Quality) |
S235JR, S275JR, S275J2 S355JR, S355J2 |

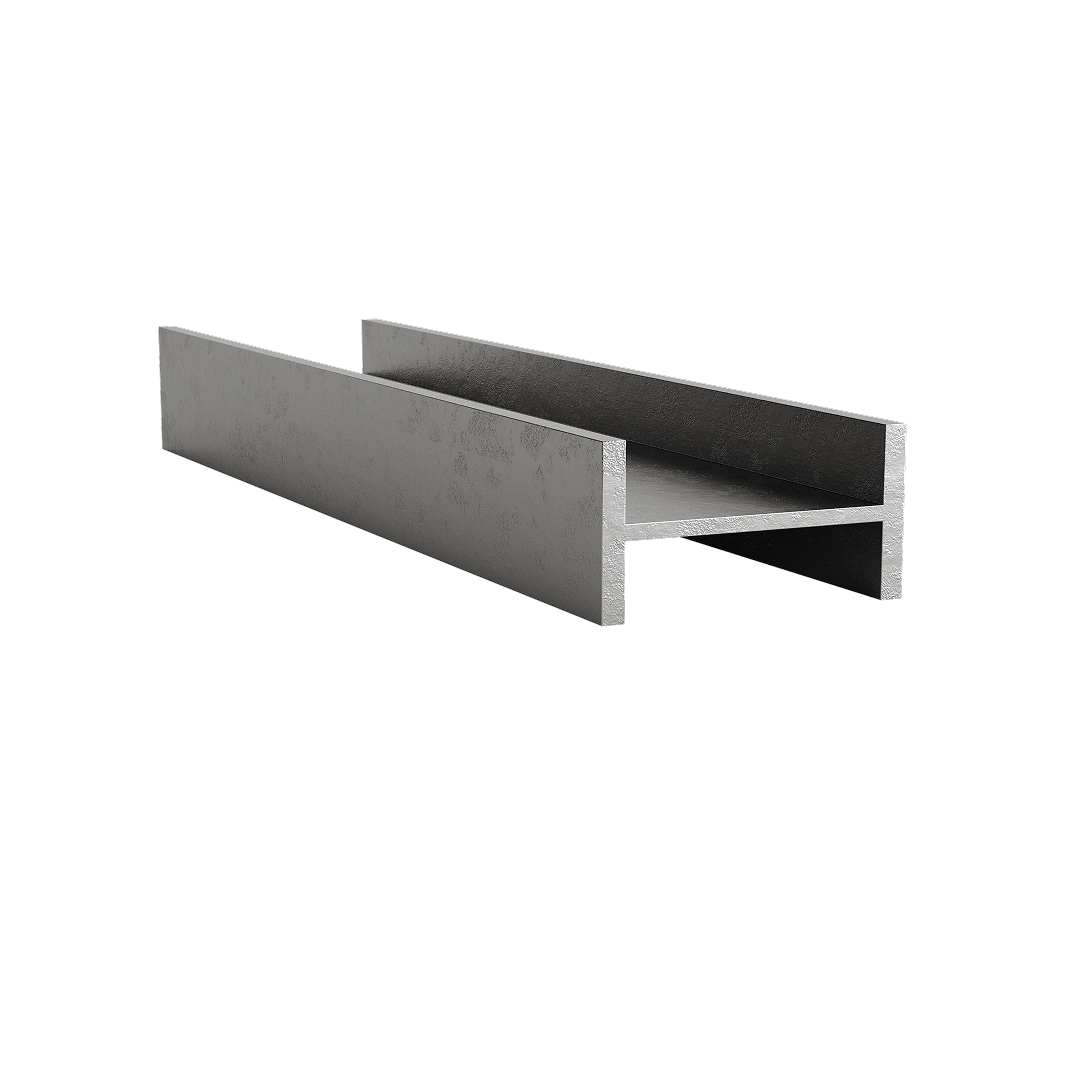

NPI steel is a type of structural steel profile commonly used in the construction and manufacturing industries. The abbreviation “NPI” stands for “Normal Profile I,” which refers to the profile’s I-shaped cross-section.
These profiles are hot-rolled and typically produced in the following grades:
S235JR (ST37), S275JR (ST44), S355JR (ST52), S275J2, and S355J2.
They are available in standard lengths of 6 meters and 12 meters. However, custom lengths can be produced according to project requirements.
Features of NPI Steel:
-
Shape: NPI profiles have an “I”-shaped cross-section, offering high strength and load-bearing capacity.
-
Material: Generally manufactured from carbon steel.
-
Dimensions: Defined by parameters such as width, height, and thickness. Various sizes are available for different applications.
Advantages of NPI Steel:
-
High strength due to the I-shaped design, increasing load-bearing performance.
-
Economical compared to many other structural steel profiles.
-
Easy to process through cutting, drilling, and welding.
-
Available in a wide range of sizes, allowing for versatility in use.
| IPE Profilleri | TS 910/1 | ||||
| IPE Profiles | DIN 1025 | ||||
| Kesit (Designation) |
Ağırlık (Weight) |
Boyutlar (mm) | Dimensions (mm) | ||
| IPE | kg/mt | h | b | tw | tf |
| 100 | 8,1 | 100 | 55 | 4,1 | 5,7 |
| 120 | 10,4 | 120 | 64 | 4,4 | 6,3 |
| 140 | 12,9 | 140 | 73 | 4,7 | 6,9 |
| 160 | 15,8 | 160 | 82 | 5 | 7,4 |
| 180 | 18,8 | 180 | 91 | 5,3 | 8 |
| 200 | 22,4 | 200 | 100 | 5,6 | 8,5 |
| 220 | 26,2 | 220 | 110 | 5,9 | 9,2 |
| 240 | 30,7 | 240 | 120 | 6,2 | 9,8 |
| 270 | 36,1 | 270 | 135 | 6,6 | 10,2 |
| 300 | 42,2 | 300 | 150 | 7,1 | 10,7 |
| 330 | 49,1 | 330 | 160 | 7,5 | 11,5 |
| 360 | 57,1 | 360 | 170 | 8 | 12,7 |
| 400 | 66,3 | 400 | 180 | 8,6 | 13,5 |
| 450 | 77,6 | 450 | 190 | 9,4 | 14,6 |
| 500 | 90,7 | 500 | 200 | 10,2 | 16 |
| 550 | 106 | 550 | 210 | 11,1 | 17,2 |
| 600 | 122 | 600 | 220 | 12 | 19 |
| 750X147 | 173 | 753 | 265 | 13,2 | 17 |
Steel construction and steel roof manufacturing
Construction of residential, industrial, and commercial buildings
Restoration of reinforced concrete and historical stone structures
Agricultural and machinery industry manufacturing
Railway wagon production
Shipbuilding
Elevator manufacturing
