Flat Iron

Flat Iron
Üretim Standartı	TS EN 10058
Genişlik Ölçüsü (Width Dimension)	10, 16, 20, 25, 30, 40, 50, 60, 70 80, 90, 100, 120, 150, 180, 200, 220, 250
Kalınlık (Thickness Dimension)	Between 3 - 40mm
Uzunluk (Length)	4000 mm - 18000 mm
Kalite (Quality)	S235JR, S275JR, S275J2 S355JR, S355J2, 1020, 1040

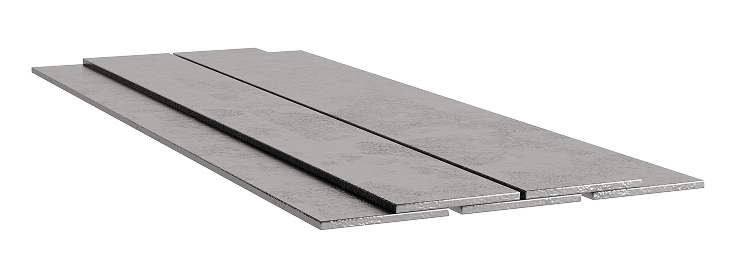

Flat iron is a flat steel product with a rectangular cross-section, used in construction, manufacturing and various industrial fields. Usually hot rolled. S235JR (ST37), S275JR (ST44), S355JR (ST52) are rectangular, hot rolled and square shaped metal materials with a width of 10.00 mm - 250.00 and a thickness of 3.00 mm - 50.00. The standard is 6 MT. Special size production can also be made according to the desired size according to the project situation.

Features of Flat Iron:
Form: It has a rectangular cross-section and a flat structure.
Material: They are usually made of carbon steel.
Dimensions: It is determined by various parameters such as width, thickness and length. Different sizes of irons are suitable for different applications.

Surface: Their surfaces are usually smooth.

Advantages of the Flat Iron:
High Strength: It has high tensile and yield strength. This feature increases the capacity to carry heavy loads.
Easy Processability: It can be easily shaped by processes such as cutting, drilling, welding and bending.
Diversity: Available in different sizes to suit a variety of applications.
Economical: It is generally more economical than other structural steel profiles.

Lama Demirleri											TS 3024
											DIN 1017
Genişlik b Kalınlık(mm) Thickess (mm) (Width)
mm	3,00	5,00	6,00	8,00	10,00	12,00	16,00	20,00	25,00	30,00	35,00	40,00	50,00
10	0,23	0,39	0,48	0,62
12	0,23	0,39	0,48	0,62	0,62
15	0,35	0,59	0,72	0,94	1,18
16	0,38	0,64	0,77	1,02	1,28
20	0,47	0,78	0,96	1,26	1,57
25		0,98	1,20	1,57	1,96
30	1,17	1,44	1,88	2,35
35	1,37	1,68	2,20	2,75
40	1,57	1,92	2,51	3,14	3,77	5,02	6,28
45	1,77	2,16	2,82	3,53	4,24	5,65	7,07
50	1,96	2,40	3,14	3,92	4,74	6,28	7,85
60		2,88	3,76	4,71	5,65	7,53	9,42
70		3,36	4,39	5,49	6,59	8,79	10,99
80		3,84	5,02	6,28	7,53	10,05	12,56
90		4,32	5,76	7,06	8,48	11,30	14,13
100		4,80	6,40	7,85	9,42	12,60	15,70	19,63	23,55
120			7,68	9,42	11,30	15,10	18,80	23,55	28,26
130			8,32	10,25	12,25	16,32	20,41	25,51	30,62
140			8,96	10,99	13,19	17,58	21,98	27,48	32,97
150			9,60	11,77	14,13	18,84	23,55	29,44	35,33
160				12,56	15,07	20,09	25,12	31,40	37,68	44,00	20,20	62,80
170				13,35	16,01	21,35	26,69	33,36	40,04	46,70	53,40	66,70
180				14,13	16,96	22,60	28,26	35,33	42,39	49,50	56,50	70,70
190				14,92	17,90	23,86	29,83	37,29	44,75	52,20	59,66	74,57
200				15,70	18,84	25,12	31,40	39,25	47,10	55,00	62,80	78,50
210				16,49	19,78	26,37	32,97	41,21	49,46	57,69	65,94	82,40
220				17,27	20,72	27,63	34,54	43,18	51,81	60,44	69,08	86,35
230				18,10	21,67	28,90	36,11	45,14	54,17	63,19	72,22	90,27
240				18,34	22,61	30,14	37,68	47,10	56,52	65,94	75,36	94,20
250				19,63	23,55	31,40	39,25	49,06	58,88	68,68	78,50	97,12

Steel construction and steel roof manufacturing,

Shipbuilding manufacturing, traffic sign and highway equipment manufacturing,

Agricultural and machinery industry manufacturing,

Fence and barrier manufacturing,

Wrought iron manufacturing,

Furniture manufacturing,

Elevator manufacturing,

Automotive and automotive supply industry,
